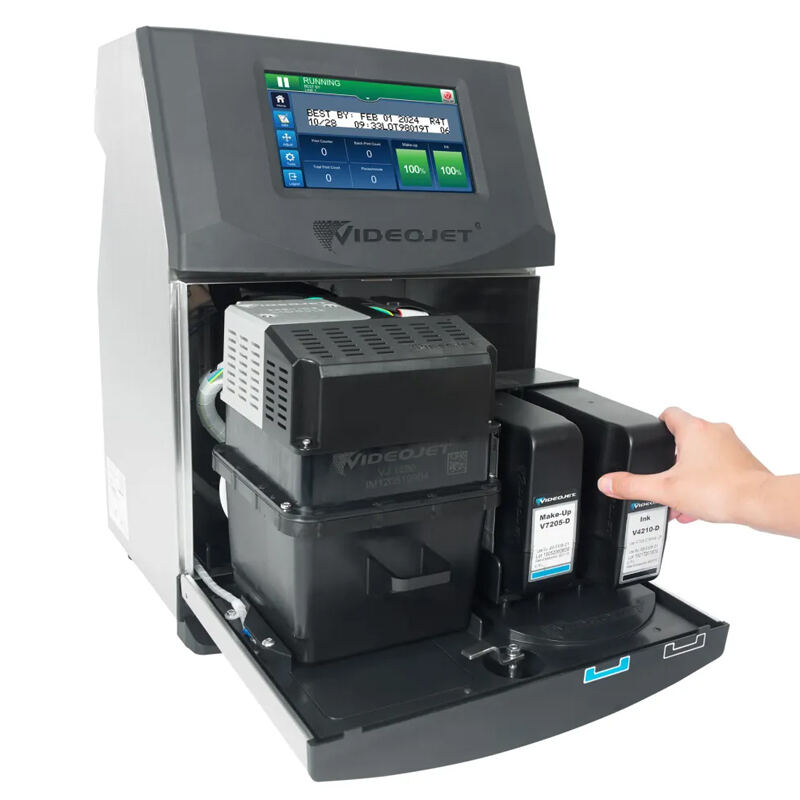

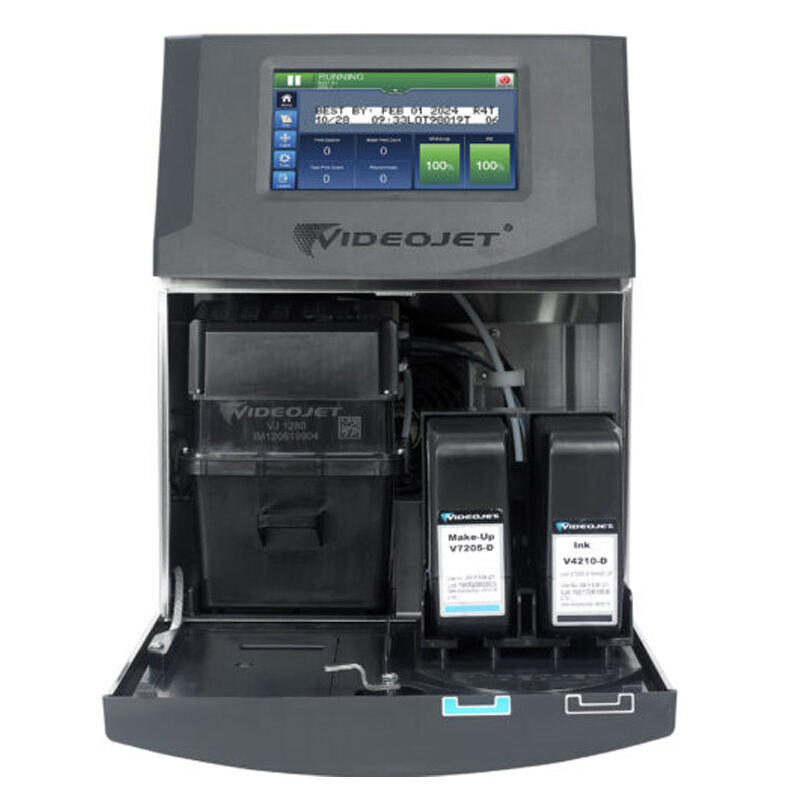

The Videojet 1280 continuous inkjet (CIJ) printer is a user-centric, cost-efficient light-to-medium duty industrial coding solution built for stable daily production marking. Equipped with the intuitive SIMPLICiTY™ touchscreen and low-maintenance SmartCell modular system, this stainless steel CIJ machine delivers consistent text, date, batch and barcode printing for small & mid-volume manufacturing lines. Balancing affordable upfront investment, simple operation and reliable uptime, it ranks as one of the most popular entry-level industrial coders for food, cosmetics, packaging and electronics factories worldwide.
Core Key Features
1. Ultra-Simple Operation & Code Assurance
- 8-inch tablet-style SIMPLICiTY™ full-color touchscreen with live WYSIWYG preview, cutting operator training time drastically.
- Built-in tutorial videos for ink replacement, printhead cleaning and message editing; no thick printed manuals required.
- Multi-level password protection + customizable message lock rules to eliminate human coding errors (Code Assurance technology).
- Onboard storage for over 250 independent coding templates; dual USB 2.0 ports support unlimited message import/export for multi-SKU production.
- Supports up to 5 print lines with multiple font matrices from 5x5 to 25x34 adjustable print height (2–10 mm).
2. Minimal Maintenance & Maximized Uptime
- Patented SmartCell™ integrated service module: Annual preventive maintenance takes only 5 minutes without professional technicians, required every 12 months or 3,000 operating hours (whichever comes first).
- Spill-free Smart Cartridge ink & solvent system with auto-compatibility detection to avoid wrong fluid errors and leakage waste.
- Dynamic Calibration™ auto-adjusts jet parameters against temperature/humidity shifts to retain crisp print quality.
- Unique idle stability: Can sit unused for up to 14 days and restart with perfect marking without extra manual flushing.
- Optional Positive Air printhead kit extends cleaning intervals for dusty, humid factory workshops.
3. Stable Printing Performance
- Max single-line production speed: 162 m/min (533 ft/min); speed decreases slightly with multi-line printing.
- Natively prints alphanumeric text, expiry dates, lot numbers, linear barcodes (UPC/EAN, Code 128, GS1) and 2D codes (DataMatrix, QR) for full product traceability.
- Standard 2 m printhead umbilical cable; optional extended 3 m cable for flexible line layout.
- Non-contact printing works on curved, round and flat surfaces without scratching packaging.
4. Factory Integration & Environmental Durability
- Standard IP55 stainless steel cabinet, fully dust and splash-proof for wet food processing workshops.
- Complete I/O terminals: product detection input, encoder sync, alarm beacon output, relay control.
- Wired Ethernet LAN and optional RS232 serial connection for seamless PLC, conveyor and automation system linkage.
- Optional VideojetConnect™ Remote Service enables online diagnostics, remote troubleshooting and real-time printer status monitoring by global technical experts.
5. Wide Ink & Substrate Compatibility
Supports full series of Videojet iQMark certified inks: standard solvent dye inks, indirect food-safe inks, fast-drying high-contrast inks for films, halogen-free low-odor specialty inks. Compatible substrates include plastic, glass, metal, aluminum cans, flexible film, paper cartons, rubber and eggshells.
Main Application Scenarios
1. Food & Beverage Industry
Plastic bottle caps, glass jars, snack pouches, egg trays, dairy containers, canned goods, small beverage bottles. Main coding content: production dates, expiry codes, batch lots, traceability serial numbers.
2. Cosmetics & Personal Care
Plastic tubes, cream jars, perfume bottles, foil sachets and skincare packaging for manufacturing lot marking.
3. General Packaging
Paper cartons, adhesive labels, flexible packaging films, small composite packaging for brand and batch identification.
4. Small Electronics & Hardware
Mini plastic components, wire cables, plastic fittings and small metal parts for part number and serial marking.
5. Secondary Pharmaceutical Packaging
Medicine outer cartons, auxiliary medical device packaging for non-direct-contact compliant coding.
Frequently Asked Questions (Q&A)
Q1: What is the maximum line speed of the Videojet 1280 CIJ printer?
A: It reaches a top speed of 162 m/min (533 ft/min) for single-line printing. Printing speed reduces with more content lines: dual-line at around 90 m/min and 5-line at roughly 30 m/min, matching most light & medium-speed packaging lines.
Q2: How often do I need to perform full maintenance on the 1280?
A: Major preventive maintenance via the replaceable SmartCell module is required once every year or 3,000 operating hours. Daily routine tasks only involve quick fluid level checks; Dynamic Calibration and 14-day idle stability greatly cut manual printhead cleaning frequency.
Q3: Can the Videojet 1280 connect to factory PLC or remote monitoring systems?
A: Yes. It comes with built-in Ethernet for stable PLC synchronization, plus an optional RS232 kit for legacy production equipment. The optional VideojetConnect remote service enables cloud-based fault alerts, remote message editing and direct online technical support.
Q4: What printhead cable lengths are available for the 1280 model?
A: The standard umbilical cable length is 2 m (6.56 ft). A 3 m extended cable is offered as an optional accessory for production lines with longer mounting distances.
Q5: Does the Videojet 1280 support 2D barcode printing for traceability compliance?
A: Fully supported. It natively generates GS1 DataMatrix, QR codes and all mainstream linear barcodes, suitable for product traceability, batch tracking and general packaging compliance requirements.
Q6: Is the printer suitable for humid food processing workshops with regular water splashes?
A: The standard stainless steel cabinet holds an IP55 dust and splash-proof rating. For heavy humidity and frequent washdown environments, you can add the Positive Air printhead kit to block moisture and dust from clogging the nozzle.
Q7: How many coding messages can the printer store internally?
A: The internal memory stores over 250 separate complex coding templates. Unlimited message storage is supported via USB flash drive for factories with dozens of different product SKUs.
Q8: What is the difference between Videojet 1240 and 1280 CIJ printers?
A: Both share identical max line speed and touchscreen design. The 1280 features upgraded fluid circuit stability, longer idle standby capability (14 days vs shorter idle time on 1240), optional Positive Air printhead and native 2D barcode optimization, making it better for multi-shift continuous production.
TIP：Our company is not an official authorized distributor of Videojet. The Videojet trademark used on this website is solely for indicating the product brand. All products sold are genuine original goods with legal sources. Pictures are for reference only.
