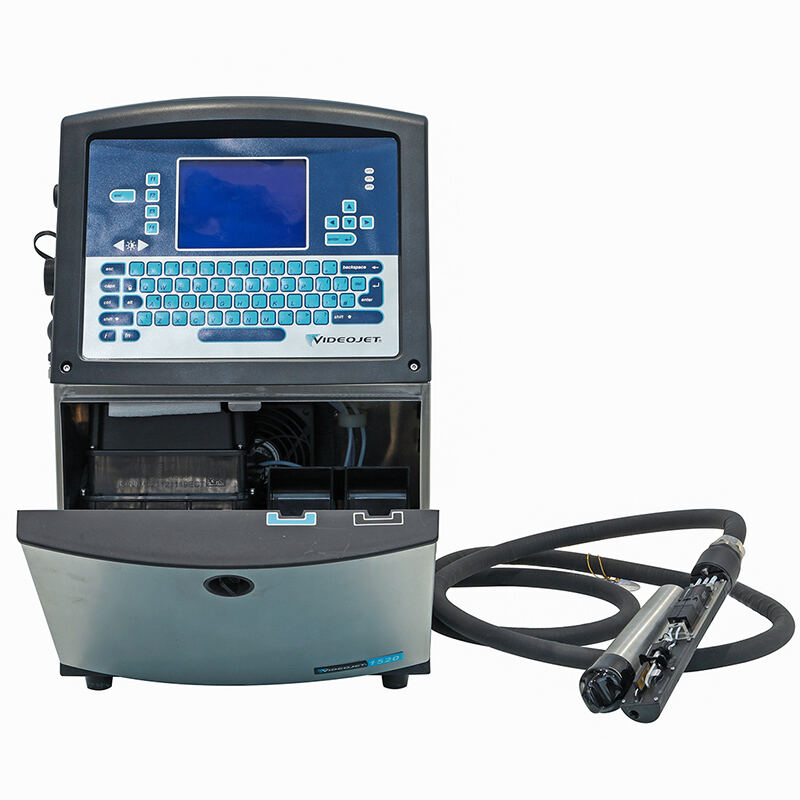

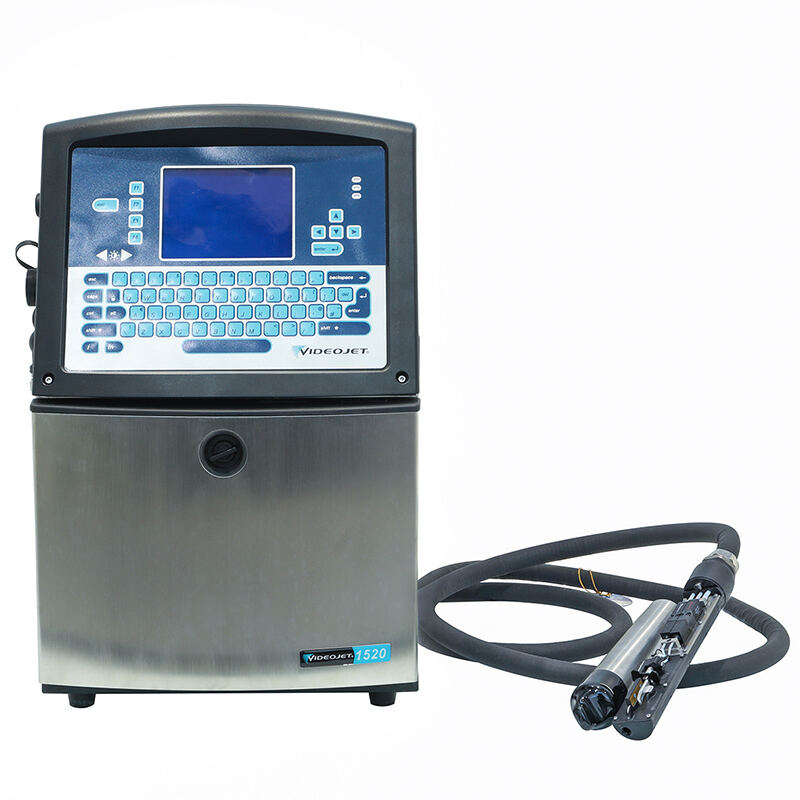

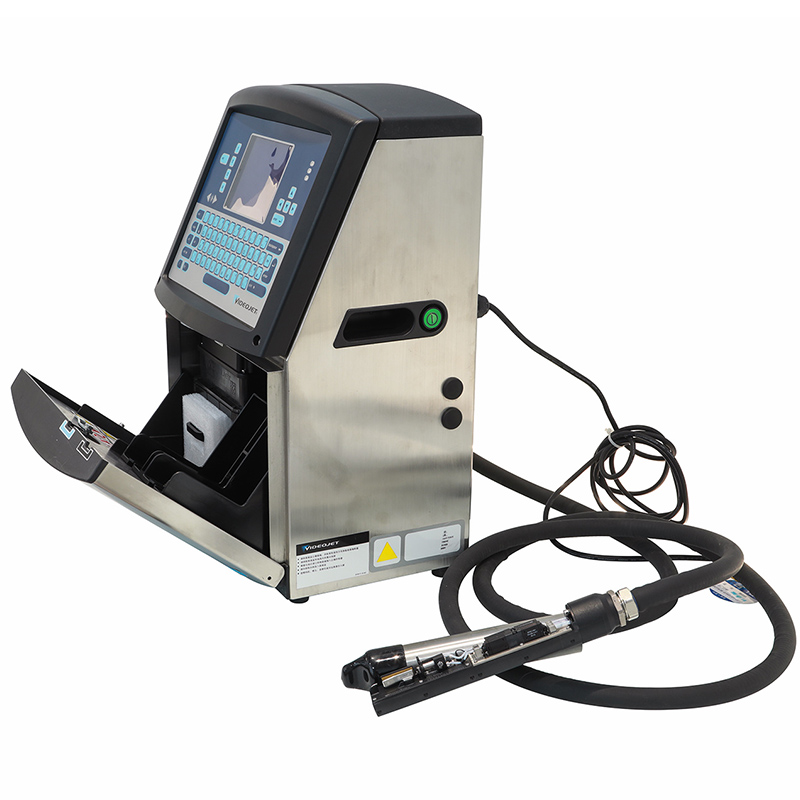

The Videojet 1520 is a medium-duty continuous inkjet (CIJ) printer built for reliable, low-maintenance coding in multi-shift production environments. It delivers consistent, high-quality marking for dates, batch codes, and variable data across food, beverage, cosmetics, and general packaging industries.
Key Features
1. Maximized Uptime & Low Maintenance
-
CleanFlow™ Technology: Prevents ink buildup on the printhead, reducing clogs and unplanned downtime.
-
12,000-Hour Core Life: Long-lasting ink core extends maintenance intervals, ideal for 24/7 operations.
-
Internal Pump Design: Eliminates external air intake, minimizing contamination risks to the ink stream.
-
Auto-Cleaning Printhead: Enables fast restarts even after extended shutdowns.
2. Reliable Performance & Speed
-
Dynamic Calibration™: Automatically adjusts jetting parameters for consistent print quality despite temperature or viscosity changes.
-
High-Speed Coding: Up to 279 m/min (914 ft/min) for single-line printing; supports 1–5 lines of text.
-
Adjustable Print Height: 2 mm to 10 mm for versatile character sizing.
3. User-Friendly Operation
-
Smart Cartridge™ System: Mess-free ink/solvent replacement with automatic compatibility checks.
-
Intuitive Interface: Full QWERTY keyboard and clear display for easy message creation and editing.
-
Message Storage: Saves up to 100 frequently used messages for quick recall.
-
Password Protection: Multi-level access prevents accidental setting changes.
4. Versatile Coding Capabilities
- Prints alphanumeric text, logos, and symbols; supports UPC, EAN, Code 128, Code 39, and DataMatrix codes.
- Works on diverse substrates: plastic, glass, metal, paper, and flexible films.
- Integrates seamlessly with CLARiSOFT®/CLARiSUITE® for remote management and variable data printing.
Applications
The Videojet 1520 excels in medium-volume, multi-shift production lines where reliability and low maintenance are critical:
-
Food & Beverage: Plastic bottles, cans, flexible pouches, and cartons (expiry dates, batch numbers).
-
Cosmetics & Personal Care: Tubes, jars, and bottles (lot codes, manufacturing dates).
-
Pharmaceuticals: Blister packs, sachets, and vials (traceability codes).
-
General Packaging: Foil, film, and paper labels (high-speed line coding).
-
Electronics & Components: Small parts and cables (part numbers, serial codes).
Q&A
Q1: What is the maximum print speed of the 1520?
A: 279 m/min (914 ft/min) for single-line printing. Speed decreases with more lines: 81 m/min (267 ft/min) for dual-line, 36 m/min (119 ft/min) for tri-line.
Q2: How often is maintenance required?
-
Core replacement: Every 12,000 hours.
-
Printhead cleaning: As needed (CleanFlow™ reduces frequency).
-
Routine checks: Minimal due to self-diagnostics and auto-cleaning.
Q3: What ink types are compatible?
A: Primarily dye-based inks for general use. Specialty inks (fast-drying, high-contrast) are available for specific substrates like plastic, glass, and metal.
Q4: Can it integrate with existing production lines?
A: Yes. It supports standard I/O connections for synchronization with conveyors and sensors. Optional Ethernet enables remote monitoring and control via CLARiSUITE®.
Q5: What is the printhead cable length?
A: Standard length is 3 m (9.8 ft); an optional 6 m (19.6 ft) cable is available for extended reach on large lines。
