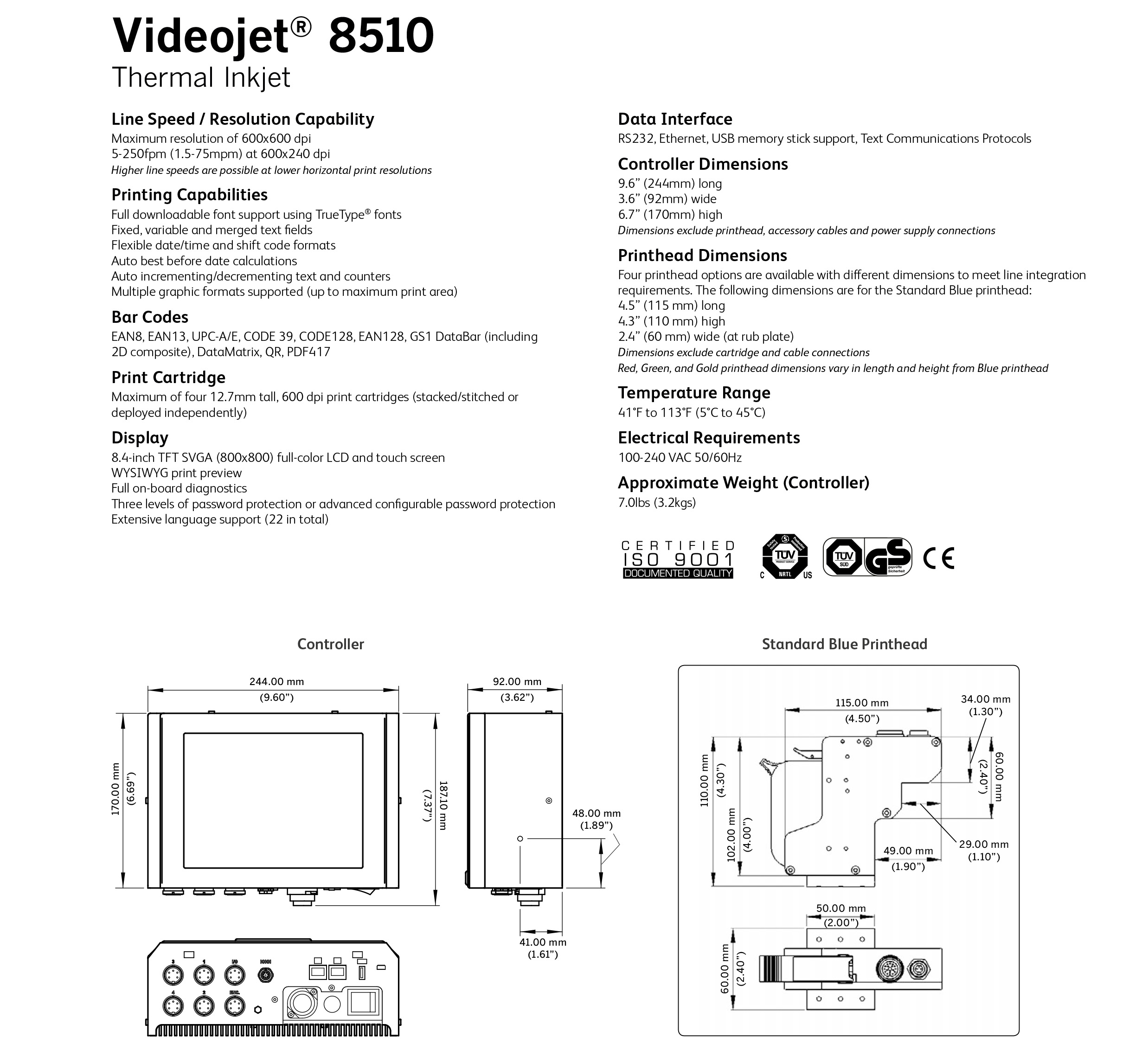

The Videojet 8510 Thermal Inkjet (TIJ) Printer, also branded Wolke m600 Touch, is a compact entry-level industrial coding machine powered by HP TIJ technology. Built for light-to-medium speed primary and secondary packaging lines, it delivers stable 600×600 DPI high-definition marking with zero moving mechanical wear parts. Equipped with the intuitive CLARiTY touchscreen, flexible multi-printhead expansion and full industrial automation connectivity, this cost-effective TIJ system is widely used for date, batch, logo and traceability barcode marking across food, cosmetics, small-batch pharmaceutical and consumer goods manufacturing worldwide.
Core Key Features
1. Zero Mechanical Wear & Minimal Maintenance
- Solid-state electronic design with no pumps, filters, valves or moving consumables; only ink cartridge replacement required for daily operation
- Spill-free genuine HP integrated ink cartridges; full swap finished in under 60 seconds without professional training
- Auto cartridge identification + real-time ink level monitoring to avoid wrong ink installation errors
- Constant temperature control system stabilizes print quality under 5°C–45°C workshop temperature fluctuations, cutting frequent manual printhead cleaning
- Dry, solvent-free operation eliminates fluid leakage and messy workshop cleanup
- Optional VideojetConnect™ remote cloud service for online diagnostics, real-time fault alerts and remote message editing
2. High-Definition & Flexible Printing Performance
- Native maximum resolution: 600×600 DPI for ultra-sharp tiny fonts, custom logos and highly scannable barcodes
- Max production line speed: 91 m/min (300 ft/min) at full 600×240 DPI; faster speeds supported at reduced horizontal resolution
- Single printhead delivers 12.7 mm print height; expandable to connect up to 4 independent printheads simultaneously for multi-station or double-sided coding, combined maximum print height 50.8 mm
- Native coding support: alphanumeric text, auto-calculated expiry/lot dates, TrueType fonts, UPC/EAN, Code 128, GS1 DataMatrix, QR codes for basic product traceability
3. Intuitive CLARiTY Touch HMI Operation
- 8.4-inch full-color CLARiTY touchscreen with real-time WYSIWYG preview to eliminate human coding errors
- Simplified icon-based UI; all core functions accessible within 5 screen taps for ultra-short operator training cycles
- Multi-level hierarchical password protection + complete production audit logs to meet GMP and light regulatory manufacturing standards
- Onboard storage for hundreds of coding templates; dual USB 2.0 ports support offline message import/export for fast multi-SKU production switching
- Supports 20+ global languages for cross-border factory deployment
4. Complete Industrial Automation Integration
- Standard communication ports: Ethernet TCP/IP, RS232 serial, differential encoder input, digital I/O trigger terminals, USB flash drive
- Built-in web remote control server, fully compatible with mainstream PLC, HMI and inline barcode vision inspection systems
- Compact lightweight stainless steel controller with small footprint, multiple adjustable mounting brackets fit narrow cartoners, blister machines and filling lines
- Global universal power input: 100–240 VAC 50/60Hz, adaptable to factory power supplies across all regions
5. Wide Ink & Substrate Compatibility
Full range of Videojet certified Wolke TIJ inks: water-based porous ink, indirect food-safe ink, low-odor solvent ink, fast-drying pigment ink.
Compatible printing substrates: cardboard, paper labels, flexible plastic film, aluminum foil, blister packs, coated cartons, plastic food containers and cosmetic packaging.
Main Application Scenarios
-
Food & Beverage Packaging
Snack cartons, dairy tubs, bottle labels, paper pouches, egg trays, canned goods; print production dates, expiry codes and batch lot numbers.
-
Cosmetics & Personal Care Packaging
Skincare outer boxes, perfume cartons, foil sachets, plastic tube packaging for manufacturing lot and shelf-life marking.
-
Small-Batch Secondary Pharmaceutical Packaging
Drug folding cartons, blister packs, medical device auxiliary boxes for basic GS1 traceability code printing (low/medium volume production).
-
General Consumer Goods Packaging
Small corrugated cartons, adhesive labels, composite packaging for brand identification and batch tracking.
-
Electronics Parts Outer Packaging
Mini plastic component boxes, wire cable wrappers for part number and factory serial marking.
Frequently Asked Questions (Q&A)
Q1: What is the core difference between Videojet 8510 and upgraded 8520 TIJ printer?
A: The 8510 (Wolke m600 Touch) is entry-level with max line speed 91 m/min and basic serialization data processing, suitable for regular medium-speed packaging lines. The 8520 (Wolke m610 Touch) supports up to 109 m/min, larger data buffer for mass pharmaceutical serialization and stable high-speed 2D barcode output for strict track & trace regulations. They share identical printheads and interchangeable ink cartridges.
Q2: How many printheads can the Videojet 8510 drive at the same time?
A: Up to 4 independent 12.7mm print cartridges, which can run separately or simultaneously to realize dual-side or multi-position coding on one production conveyor line.
Q3: Does the 8510 support pharmaceutical serialized 2D traceability codes?
A: It prints GS1 DataMatrix and QR codes for low-to-medium volume small-batch pharmaceutical production. For high-speed mass serialization complying with EU FMD and FDA CFR21 Part 11, the upgraded Videojet 8520 is recommended.
Q4: What routine maintenance work does the Videojet 8510 require?
A: No scheduled mechanical maintenance tasks. Operators only replace exhausted ink cartridges; the built-in temperature stabilization system drastically reduces daily manual printhead cleaning work. There are no pumps, filters or fluid modules to service.
Q5: Can the printer connect to factory PLC and support remote monitoring?
A: Yes. Built-in Ethernet enables direct linkage with PLC and HMI systems. Optional VideojetConnect remote service supports online diagnostics, remote message editing and real-time equipment fault push alerts.
Q6: Are ink cartridges interchangeable between Videojet 8510, 8520 and Wolke m600/m610 OEM controllers?
A: All standard Wolke TIJ ink cartridges are fully cross-compatible, including water-based, indirect food-safe and solvent specialty inks.
TIP：Our company is not an official authorized distributor of Videojet. The Videojet trademark used on this website is solely for indicating the product brand. All products sold are genuine original goods with legal sources. Pictures are for reference only.
