The Videojet 8520 Thermal Inkjet (TIJ) Printer (also branded Wolke m610 Touch) is a high-resolution industrial coding machine built for primary & secondary packaging marking. Powered by HP thermal inkjet technology, it delivers crisp 600×600 DPI text, graphics, linear barcodes and GS1 2D traceability codes with zero mechanical moving parts. Featuring an 8.4-inch CLARiTY touchscreen and multi-printhead expandability, this compact TIJ printer balances simple operation, low maintenance and robust factory automation integration, widely used in food, pharmaceutical, cosmetics and general packaging production lines.
Core Key Features
1. Ultra-Low Maintenance & Max Uptime
- Solid-state electronic design with no moving mechanical components; only consumable replacement is ink cartridges, no pumps, filters or regular printhead disassembly cleaning.
- Spill-free genuine HP ink cartridges; cartridge swap takes under 1 minute without professional training.
- Built-in ink level tracking, auto cartridge recognition and temperature control system to stabilize print quality under fluctuating workshop temperature (5°C ~ 45°C).
- No messy solvent circulation system; clean dry operation without fluid leakage risks.

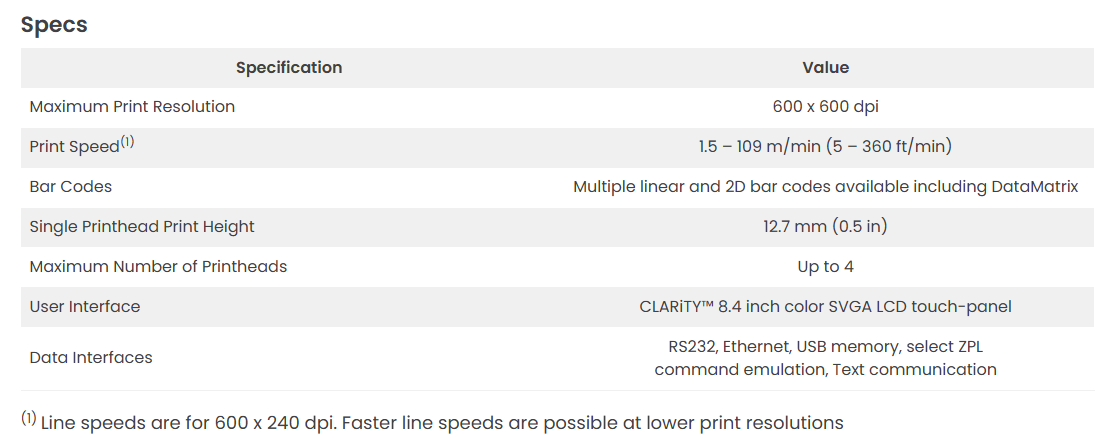

- Optional VideojetConnect™ remote cloud service for online diagnostics, real-time fault alerts and remote message editingVideojet US.
2. High-Speed & High-Definition Printing Performance
- Max resolution: 600×600 DPI for ultra-sharp small fonts and scannable barcodes.
- Line speed range: 1.5–109 m/min (5–360 ft/min) under full 600 DPI mode; faster speeds supported at reduced horizontal resolution.
- Single printhead print height: 12.7 mm (0.5 inch); supports stacking multiple cartridges for taller marking areas.
- Expandable printhead configuration: Drive up to 4 printheads simultaneously or independently for multi-position line marking.
- Native support: Alphanumeric text, auto-calculated expiry/batch dates, TrueType fonts, custom logos, UPC/EAN, Code 128, GS1 DataMatrix, QR codes and PDF417 for full serialization compliance.
3. Intuitive CLARiTY Touchscreen Operation
- 8.4-inch full-color SVGA touch panel with real-time WYSIWYG preview to eliminate coding errors.
- Icon-based simplified UI; all core functions accessible within 5 taps, short operator training cycle.
- 3-tier multi-level password protection to prevent unauthorized message edits; built-in audit logs for regulated industries.
- Stores hundreds of coding templates; dual USB ports for offline message import/export for multi-SKU production switching.
- Supports 22 global languages for cross-border factory deployment.
4. Rich Industrial Integration Interfaces
- Standard communication ports: Ethernet TCP/IP, RS232 serial, USB flash drive, encoder input, digital I/O trigger signals.
- Compatible with ZPL command emulation, web server remote control to connect with third-party PLC, HMI and inline vision inspection systems.
- Compact controller body (3.2kg lightweight) with small footprint, easy to mount on cartoners, blister machines and filling lines.
- Wide power input: 100–240 VAC 50/60Hz, adaptable to global factory power supplies.
5. Broad Ink & Substrate Compatibility
Full series certified TIJ inks: fast-drying MEK solvent inks, indirect food-safe inks, low-odor halogen-free inks, high-contrast pigment inks.
Perfect printing on cardboard, flexible film, plastic bottles, aluminum foil, paper labels, blister packs, coated cartons and food containers.
Main Application Scenarios
-
Food & Beverage Packaging
Snack cartons, dairy tubs, bottle labels, flexible pouch films, egg trays, canned goods. Mark production dates, expiry codes, batch lots and traceability serial numbers.
-
Pharmaceutical & Medical Packaging
Drug cartons, blister packs, vial outer boxes, disposable medical device packaging. Prints compliant GS1 DataMatrix serialization codes to meet EU FMD, FDA CFR21 Part 11 track & trace regulations.
-
Cosmetics & Personal Care
Skincare cartons, perfume boxes, foil sachets, plastic tube outer packaging for manufacturing lot and shelf-life marking.
-
General Secondary Packaging
Corrugated small cartons, adhesive labels, composite packaging for brand identification and batch tracking.
-
Electronics Components Packaging
Small plastic part boxes, wire cable outer wrappers for part number and factory serial marking.
Frequently Asked Questions (Q&A)
Q1: What is the difference between Videojet 8520 and Wolke m610 OEM?
A: The Videojet 8520 (Wolke m610 Touch) is a standalone, touchscreen-equipped cabinet printer for end-user factory lines. Wolke m610 OEM is a headless controller designed to be embedded directly into packaging machine OEM equipment without independent touch HMI. They share identical printheads and ink cartridges but differ in integration architecture and operation interface.
Q2: How many printheads can the Videojet 8520 support?
A: Up to 4 independent 12.7mm print cartridges, which can work separately or simultaneously for dual-side or multi-station coding on one production line.
Q3: Does the 8520 support pharmaceutical serialized 2D barcode printing?
A: Yes. It natively generates high-density GS1 DataMatrix codes with stable variable data processing, fully compliant with global pharmaceutical serialization audit standards, and works seamlessly with inline barcode verification cameras.
Q4: What regular maintenance does the Videojet 8520 require?
A: No scheduled mechanical maintenance. Operators only replace ink cartridges when empty; auto temperature control and ink monitoring reduce manual printhead cleaning frequency drastically. No pumps, filters or fluid modules to service.
Q5: Can I control the printer remotely via factory PLC or cloud?
A: Yes. Built-in Ethernet enables direct PLC/HMI connection. Optional VideojetConnect cloud service supports remote code editing, production data statistics and one-click online technical troubleshooting without on-site engineer visits.
Q6: What maximum line speed can the machine reach?
A: Up to 109 m/min (360 ft/min) under full 600×240 DPI print quality; faster line speeds are achievable by adjusting horizontal resolution for basic text-only marking.
Q7: Are ink cartridges interchangeable between Videojet 8520 and Wolke m600/m610 OEM?
A: All standard Wolke TIJ ink cartridges are fully cross-compatible, including solvent, food-safe and specialty pigment inks.
