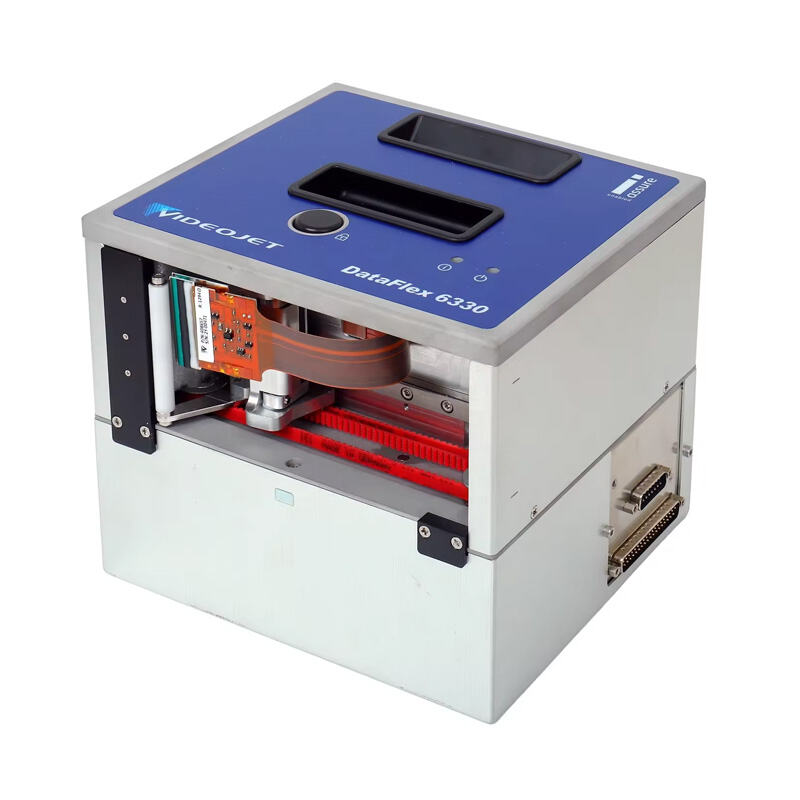

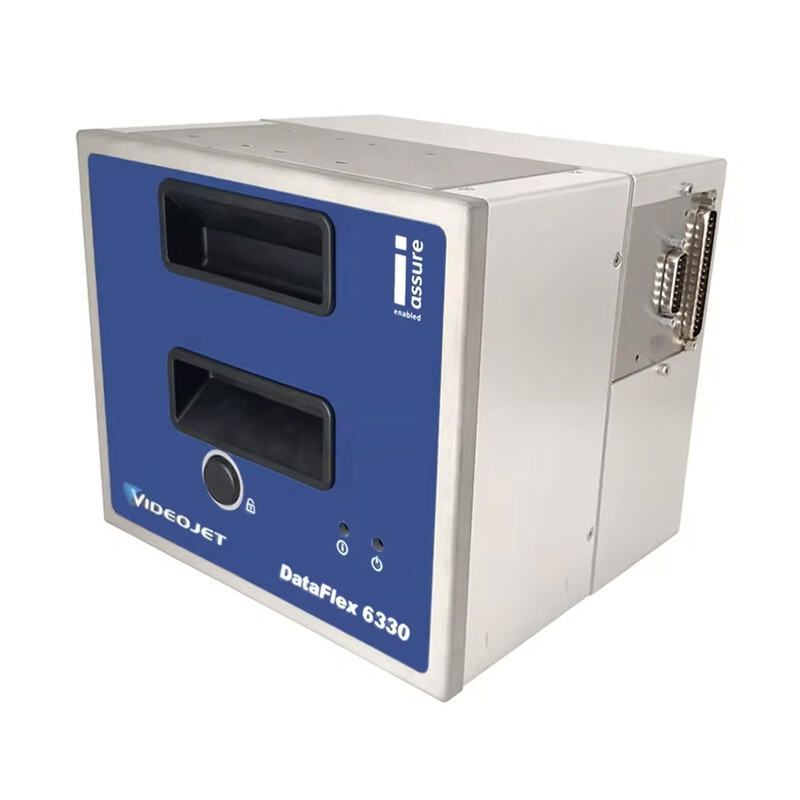

The DataFlex 6330 is a medium speed Thermal Transfer Overprinter and offers print speeds of up to 250 ppm. It is available in two print widths, 32mm and 53mm, providing the best combination of printhead and ribbon width to deliver the most cost-effective solution for your application requirements.
label: printer machine for small business，qr code printing machine，printing machine on everything，production date printing machine，bottle batch coding machine.
The Videojet DataFlex 6330 is a mid-speed thermal transfer overprinter (TTO) engineered for flexible packaging applications that demand consistent, high-resolution coding with minimal waste and rework. It serves industries such as food, pharmaceuticals, and cosmetics, delivering sharp, compliant codes on films, pouches, and labels.
The 6330 supports both intermittent and continuous motion printing, offering flexibility to match different packaging line types. It is available in 32 mm and 53 mm printhead widths, allowing users to choose the most cost-effective option for their specific application—narrower for sachets and stick packs, wider for larger pillow packs.It achieves print speeds up to 750 mm/s and throughputs of up to 250 prints per minute.

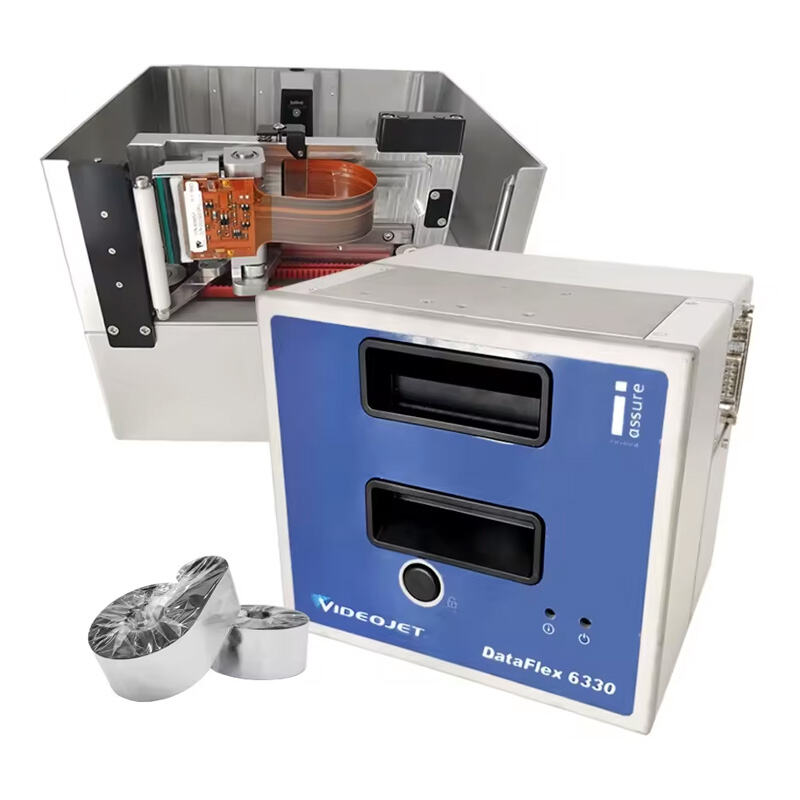

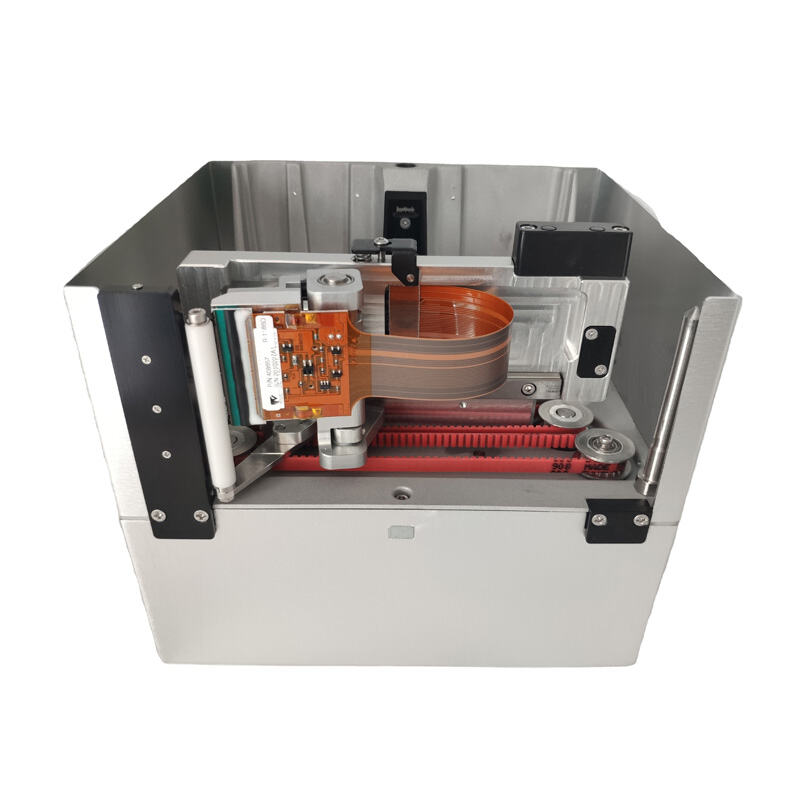

The 6330 incorporates several intelligent design elements to maximize uptime. It features Intelligent Motion™ technology, an all-electronic system that eliminates the need for compressed air, reducing operational costs and simplifying maintenance. The printer also uses a fast-change ribbon cassette and a quick-change printhead, with minimal wear parts to minimize downtime. It supports a large 1,200-meter ribbon capacity for extended production runs.
A key differentiator of the 6330 is its integrated iAssure™ code quality assurance technology.This built-in system automatically detects common print defects—such as ribbon wrinkles, dirty printheads, and damaged platens—in real-time. It captures images of every code, analyzes them for quality, and can trigger a fault to stop the line or reject products if a pre-set number of defects are detected .This helps prevent mis-coded products from accumulating, reducing packaging waste and the need for manual quality checks.

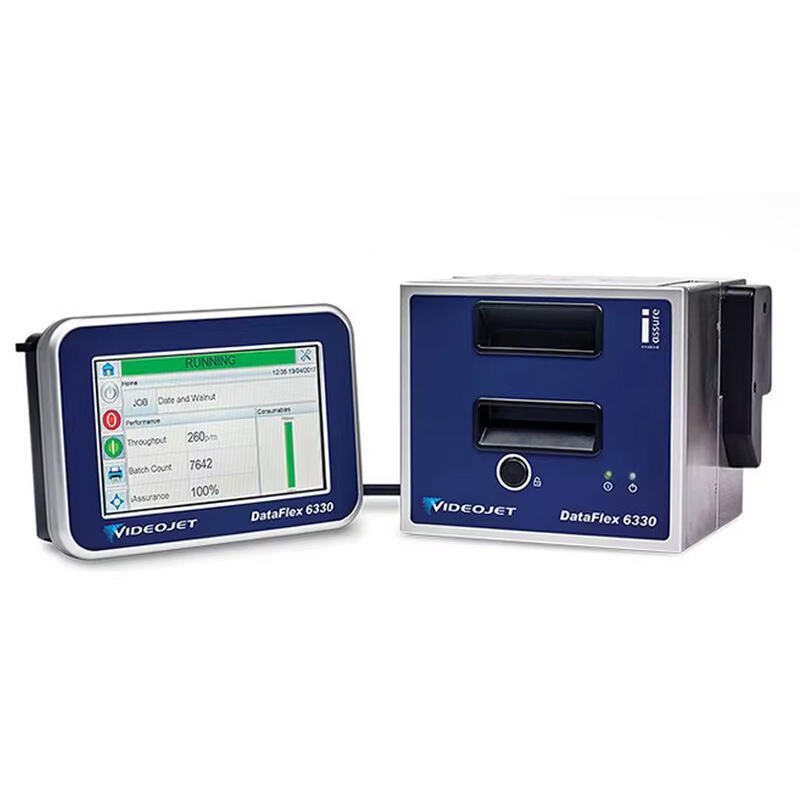

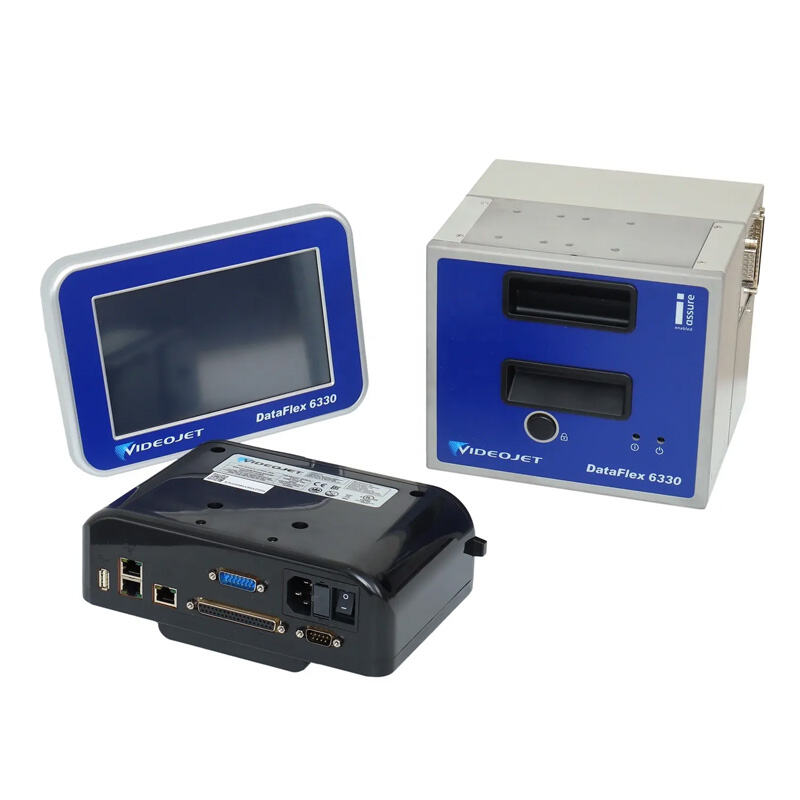

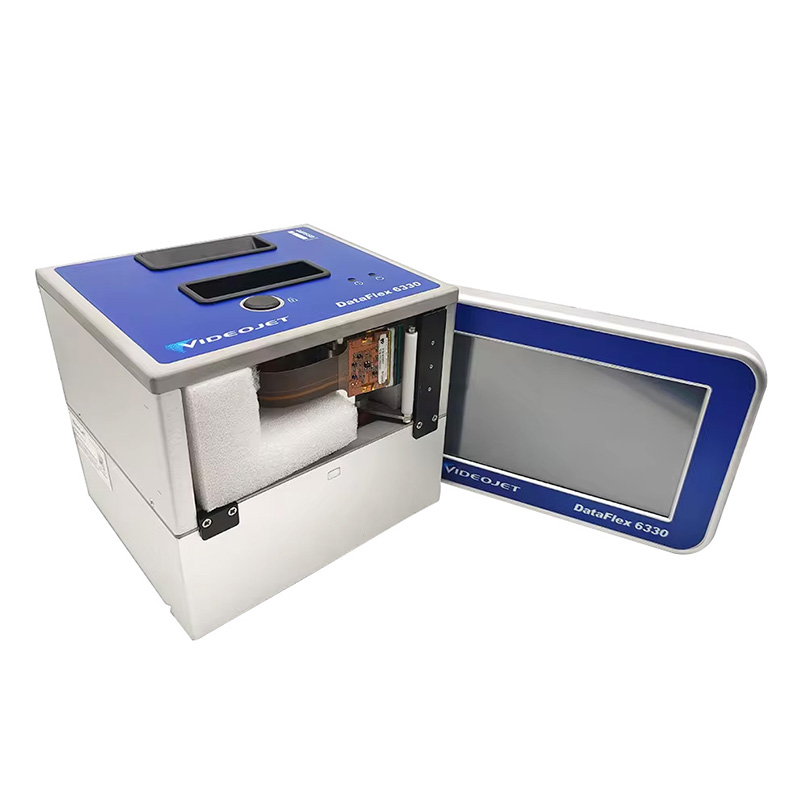

The system is operated via an intuitive CLARiTY™ color touchscreen that provides WYSIWYG print preview and full on-board diagnostics. Its modular design allows for flexible installation, and it offers extensive communication options, including RS232, dual Ethernet, and USB, enabling easy integration into existing production lines.

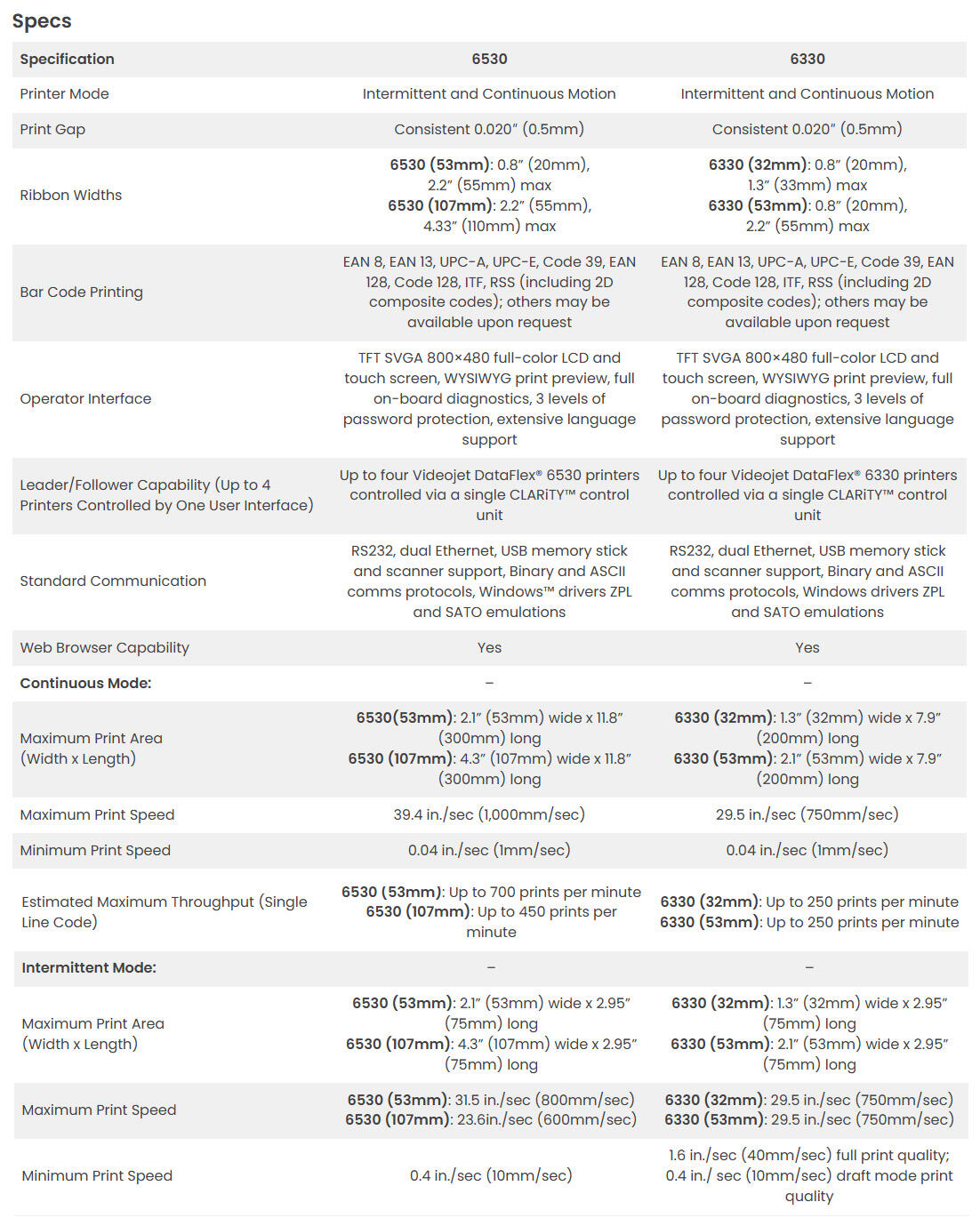

The 6330 can achieve print speeds of up to 750 mm per second in continuous mode, with maximum throughput of approximately 250 prints per minute depending on the application and code complexity.
The DataFlex 6330 is available in 32 mm and 53 mm printhead configurations. The 32 mm model suits narrow packaging like sachets, while the 53 mm model accommodates wider labels and pillow packs.
TTO printers like the 6330 are designed for flexible packaging materials, including films, foils, labels, and flexible pouches commonly used in food, pharmaceutical, and consumer goods industries.
iAssure™ is a built-in code quality checker exclusive to the DataFlex 6330 and 6530 models.It works by:
Capturing an image of every printed code.
Analyzing the image in real-time for quality and presence.
Comparing it against pass/fail parameters.
Triggering a fault to stop the line or reject products if a set number of codes fail.
Yes, it supports a wide range of barcodes, including EAN 8, EAN 13, UPC-A, UPC-E, Code 39, Code 128, ITF, RSS, and 2D composite codes.
Yes, up to four Videojet DataFlex 6330 printers can be controlled via a single CLARiTY™ control unit using the leader/follower capability.
Intelligent Motion™ is an all-electronic, airless drive system that eliminates the need for compressed air. This reduces operating costs, simplifies maintenance, and ensures consistent code quality.
TIP：Our company is not an official authorized distributor of Videojet. The Videojet trademark used on this website is solely for indicating the product brand. All products sold are genuine original goods with legal sources. Pictures are for reference only.
Products Number: Videojet 1580 + Continuous Inkjet Printer
Products Number: Domino A120 A220 Continuous Inkjet Printer
Products Number: Meenjet ink cartridge JS71(R) Invisible Red / JS71(B) Invisible Blue
Products Number: Meenjet ink cartridge JW11

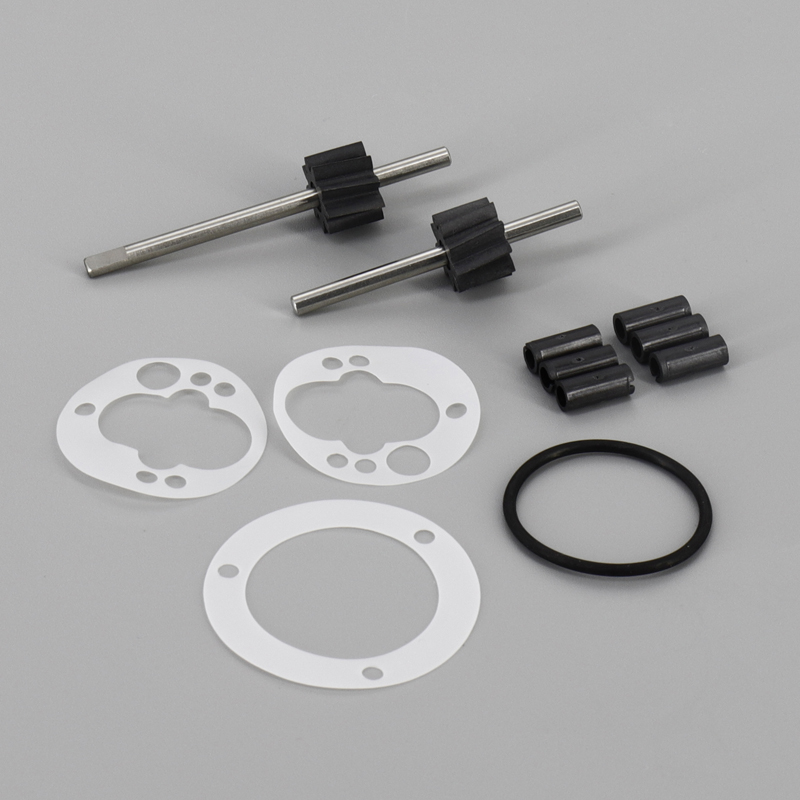

Products Number: Markem-lmaje EB-HGN0746 Type E black ink pump supply gear kit (old model pump gears with bilateral notches) T
