The DataFlex 6530 is a high-speed Thermal Transfer Overprinter that can help improve uptime and provide a more productive operation by helping to reduce time spent on quality checks, waste, and rework. It is also available in two widths, 53mm with iAssure™ technology, and an industry first airless 107mm, to meet your specific application needs.
Engineered for applications such as vertical form fill and seal, the 6530 offers print speeds of up to 1000mm/s and throughputs up to 700 ppm.

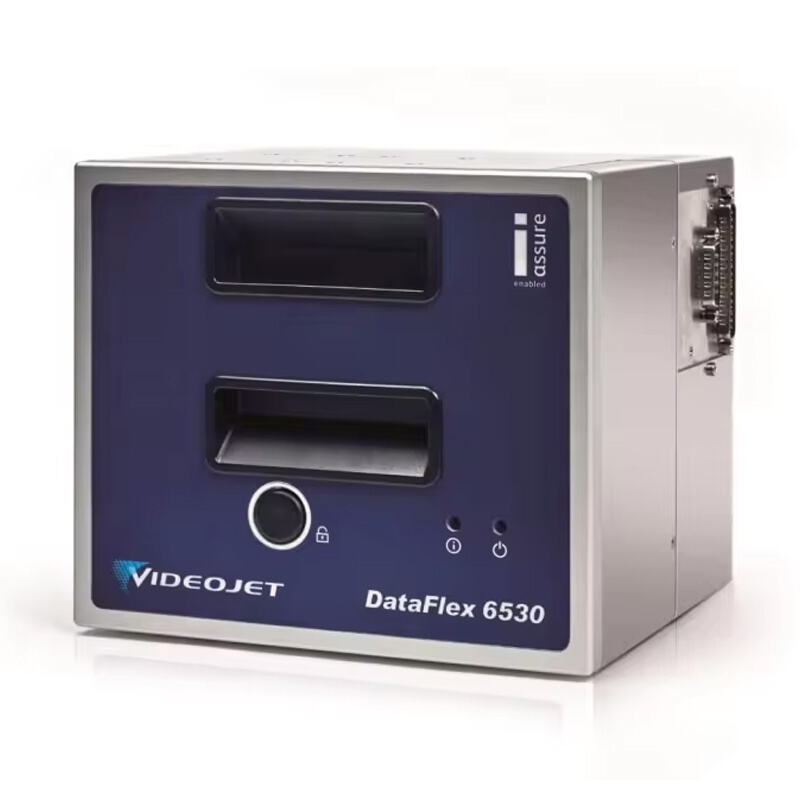

The Videojet DataFlex 6530 is a high-speed thermal transfer overprinter built to offer superior performance and consistent high-quality printing.
The airless, patented all-electronic system and ribbon drive can achieve print speeds up to 1000mm/s and throughputs up to 700 ppm1.
The 6530 offers multiple integration options with a modular design, and is available in two printhead widths, 53mm with iAssure and 107mm, to meet your specific application needs.
label: new printing，product printer，qr printer，logo printing printer，product label printer.
The Videojet DataFlex 6530 is a high-performance thermal transfer overprinter (TTO) designed for demanding, high-speed flexible packaging lines. It serves industries such as food, pharmaceuticals, and consumer goods, providing the speed and precision needed for complex coding on films, foils, and pouches.
The 6530 is engineered for applications like vertical form-fill-seal, achieving print speeds of up to 1,000 mm/s and throughputs of up to 700 prints per minute with a single-line code. It offers two printhead width options to match specific application needs: a 53 mm model equipped with iAssure™ technology, and an industry-first airless 107 mm wide-format model for complex, information-rich codes.
The 6530 is built to maximize production uptime through several key innovations:
Intelligent Motion™ Technology: This all-electronic, airless system eliminates the need for compressed air, reducing operational costs and maintenance while ensuring consistent print quality and extended printhead life.
Large Ribbon Capacity: Supporting up to 1,200-meter ribbons, the printer minimizes changeover frequency. It also features a fast-change ribbon cassette and minimal wear parts to speed up replacements when needed.
A standout feature of the DataFlex 6530 is its integrated iAssure™ code quality assurance technology, which is standard on the 53 mm model. This system automatically detects common print defects—such as ribbon wrinkles, a dirty printhead, or a damaged platen—in real-time.By catching errors before products accumulate, it significantly reduces waste, rework, and the need for manual quality checks.

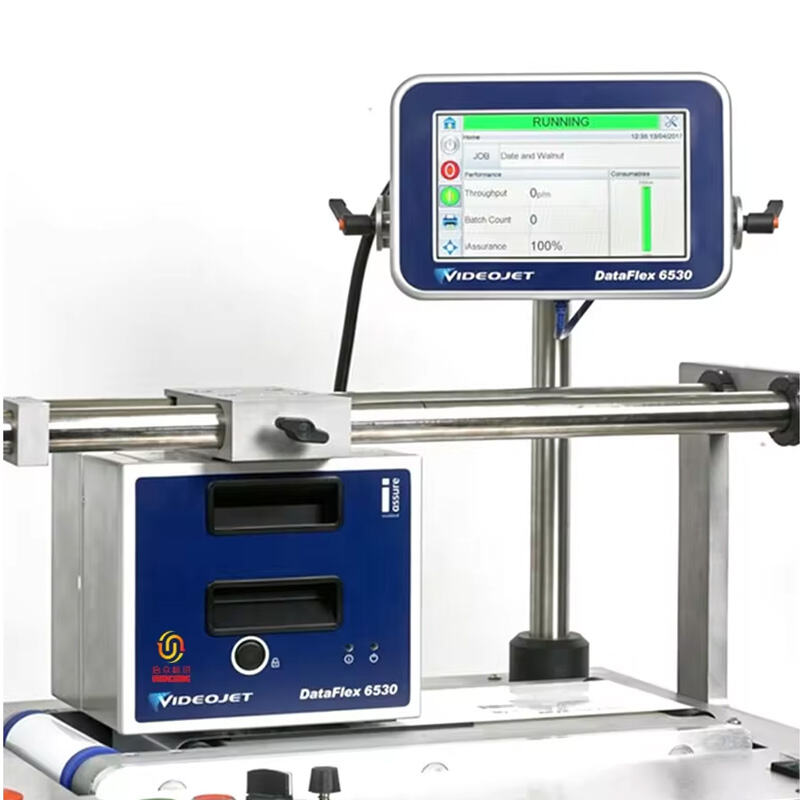

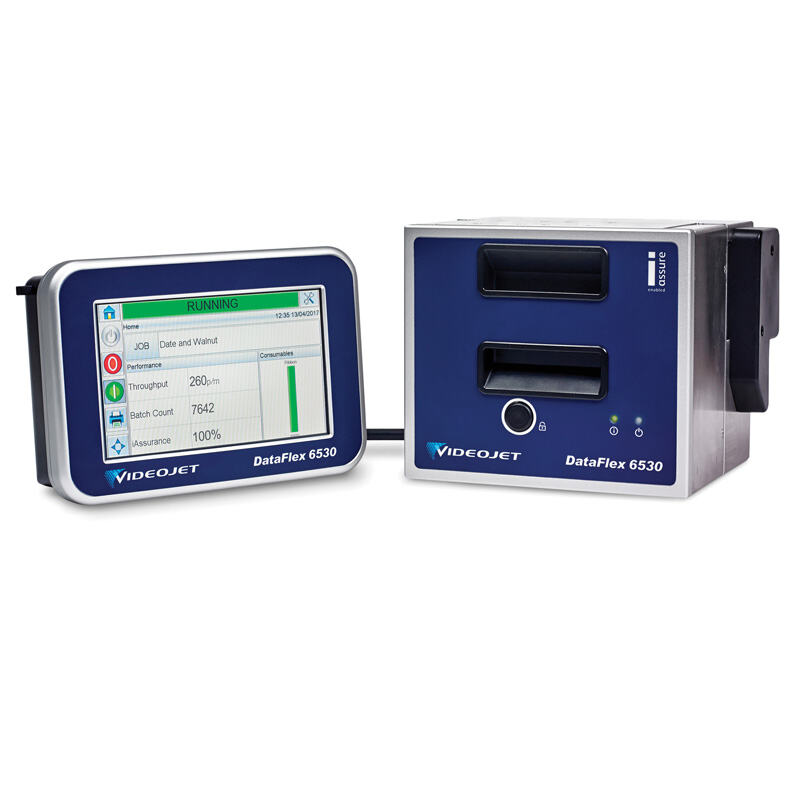

The system is operated through an intuitive CLARiTY™ color touchscreen that features WYSIWYG print preview and full on-board diagnostics. It offers extensive communication options—including RS232, dual Ethernet, and USB—and supports ZPL and SATO emulations for seamless integration into existing production lines.It also has web browser capability, allowing for remote control through a host machine interface.
The 6530 can achieve print speeds of up to 1,000 mm per second in continuous mode, with maximum throughput of approximately 700 prints per minute depending on the application and code complexity.
The DataFlex 6530 is available in two printhead configurations: 53 mm and 107 mm. The 53 mm model comes with iAssure™ technology, while the 107 mm model is an industry-first airless solution designed for wider, complex codes.
iAssure™ is a built-in code quality checker standard on the 53 mm model. It works by:
Capturing an image of every printed code in real-time.
Analyzing the image to detect common print defects like ribbon wrinkles, dirty printheads, or damaged platens.
Triggering an alert or fault to stop the line or reject products if defects are detected, preventing pallets of mis-coded products.
Intelligent Motion™ is an all-electronic, airless drive system developed by Videojet. It eliminates the need for compressed air, which reduces operating costs, simplifies maintenance, and helps maintain consistent code quality by removing the risk of operators over-adjusting air settings.
The 6530 supports a wide range of barcodes, including EAN 8, EAN 13, UPC-A, UPC-E, Code 39, Code 128, ITF, RSS (including 2D composite codes), DataMatrix, and QR codes.
Yes, up to four Videojet DataFlex 6530 printers can be controlled via a single CLARiTY™ control unit using the leader/follower capability.
The 6530 supports ribbons up to 1,200 meters in length, dependent on the ribbon composition and color. This large capacity extends production runs and reduces changeover frequency.
TIP：Our company is not an official authorized distributor of Videojet. The Videojet trademark used on this website is solely for indicating the product brand. All products sold are genuine original goods with legal sources. Pictures are for reference only.
Products Number: Inkminic CO2 Laser Marking Machine

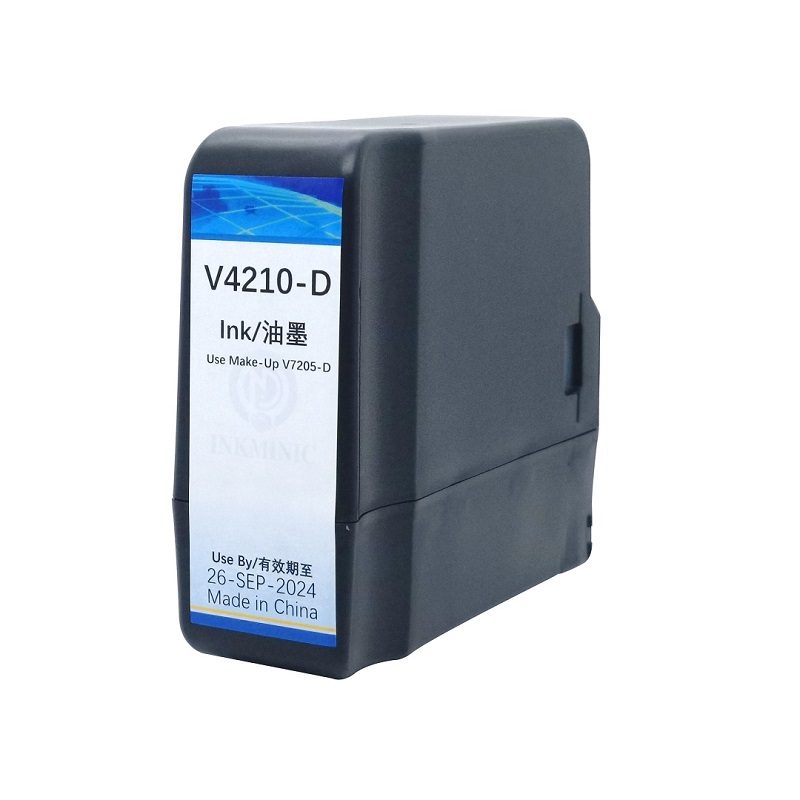

Products Number: Compatible Ink V4210-D Black 750ml For Videojet

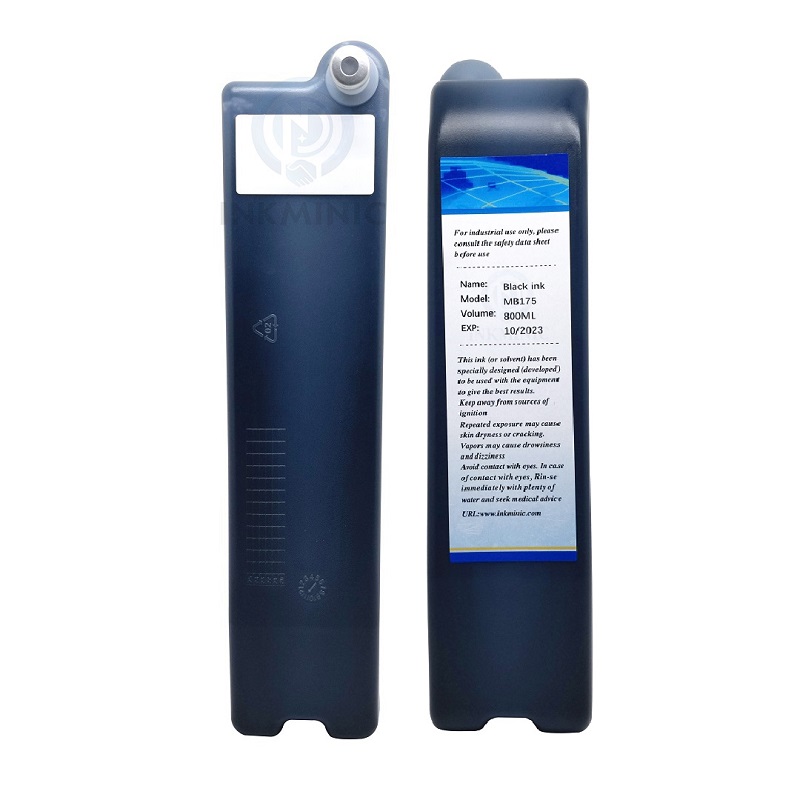

Products Number: Markem-lmaje Black Ink MB175
Products Number: Citronix 302-1001-002 compatible Black Ink

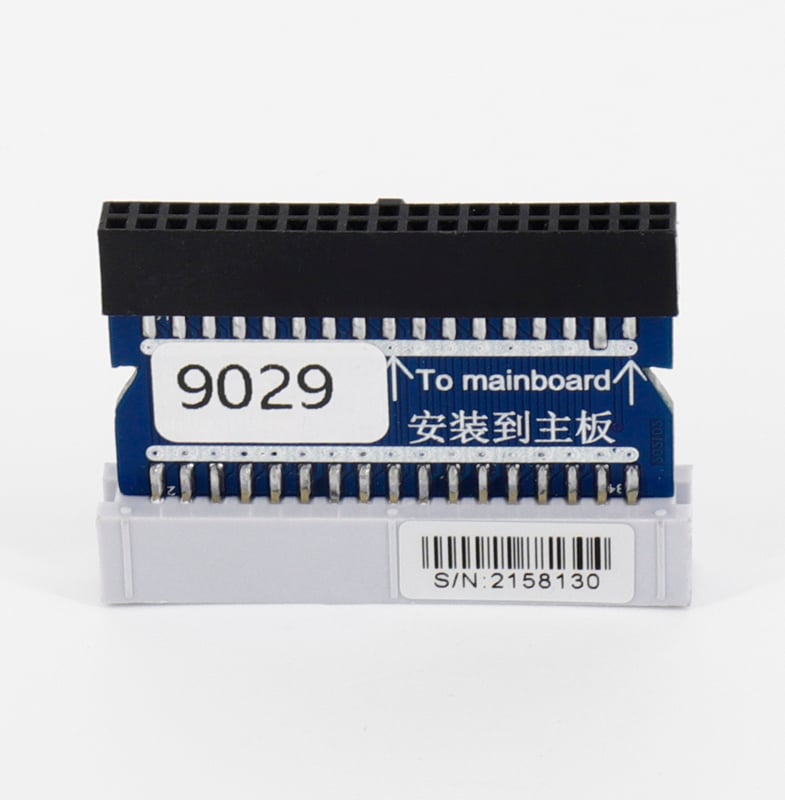

Products Number: Markem-lmaje EB-CPC000100065 Type E 9029 decoding board

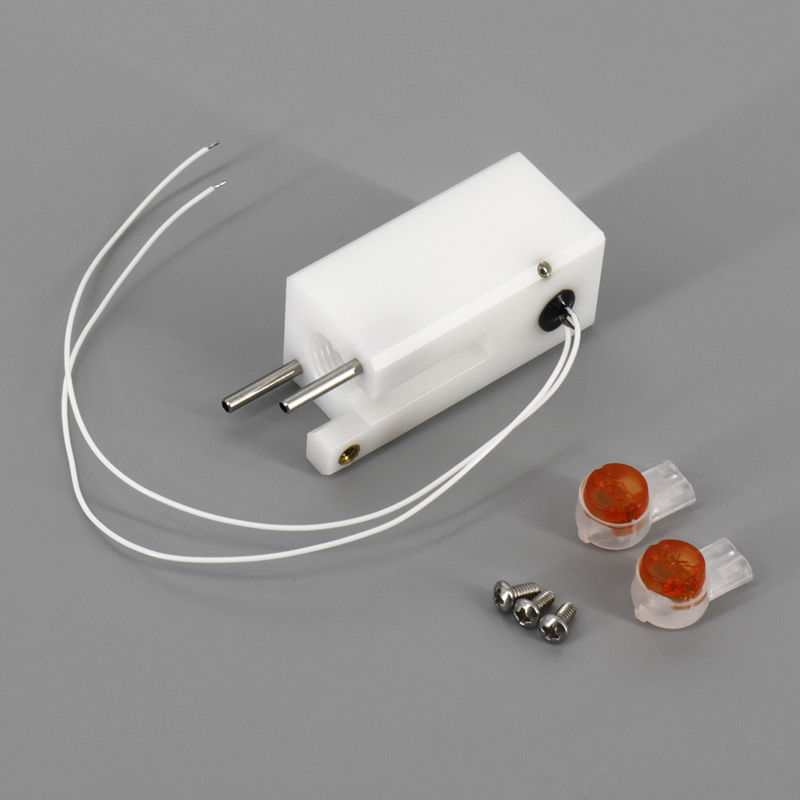

Products Number: Citronix CB002-2014-001 Type C CI1000 ink droplet generator
