The Videojet 1240 is a cost-effective light-duty continuous inkjet (CIJ) coding machine built for small-to-medium production lines. Engineered with the SIMPLICiTY™ user system, this compact industrial inkjet printer delivers stable, legible batch, date, and traceability marking with minimal training and low daily maintenance costs. It ranks among the best entry-level CIJ printers for manufacturers seeking reliable coding without high upfront investment, widely used across food, cosmetics, packaging, and small electronics industries.
Core Key Features
1. Ultra-Easy Operation & Intuitive Interface
- 8-inch tablet-style SIMPLICiTY™ color touchscreen with WYSIWYG live preview, drastically cutting operator errors and training time
- Built-in onboard tutorial videos to eliminate reliance on printed operation manuals
- Multi-level password access to prevent accidental message or parameter edits
- Stores over 250 complex pre-set coding messages, fast one-click recall via USB or local storage
2. Low Downtime Smart Maintenance Design
- Patented SmartCell™ integrated service module: User-replaceable within 5 minutes, slashing maintenance time by up to 95% vs legacy CIJ models
- Mess-free Smart Cartridge™ ink & solvent system with automatic compatibility detection, no spills or wasted fluid
- IP55 stainless steel cabinet, dust and splash-proof for wet, dusty factory environments
- Optional VideojetConnect™ remote service for online technical diagnostics and remote troubleshooting

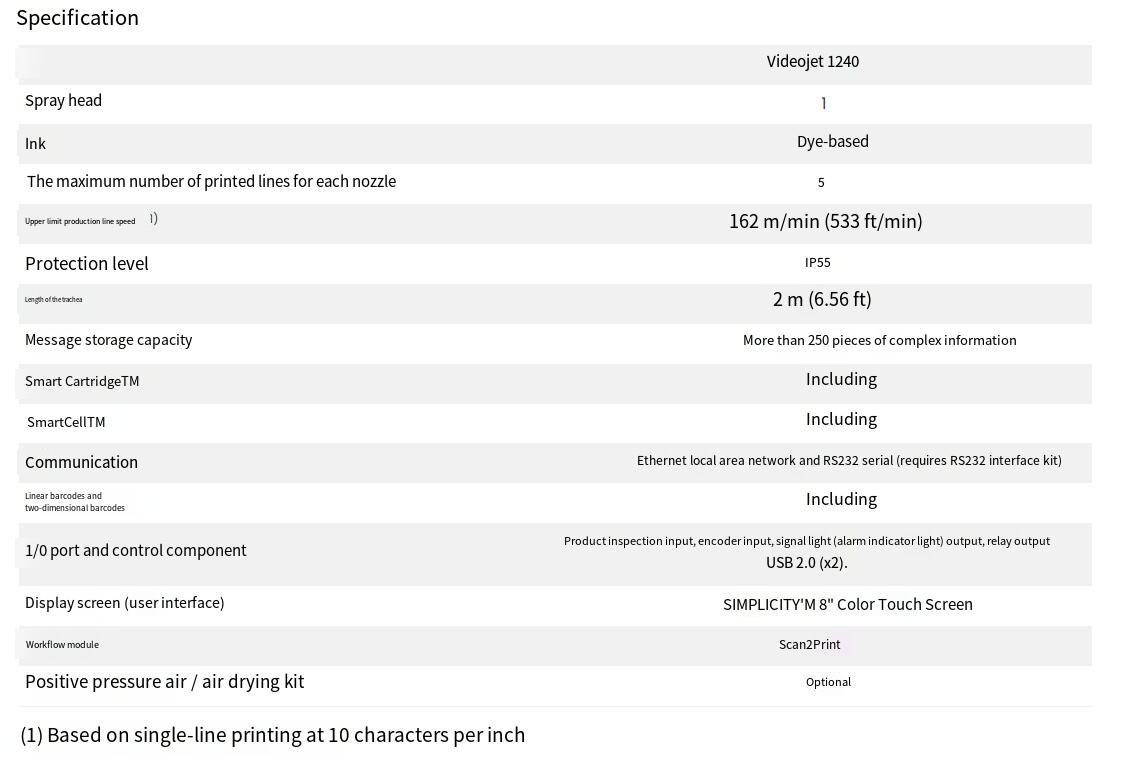

3. Stable Coding Performance & Flexible Specs
- Max production line speed: 162 m/min (533 ft/min) for single-line printing; supports 1–5 lines of variable text
- Adjustable print height: 2 mm – 10 mm with multiple built-in font matrices (5x5 up to 25x34)
- Prints alphanumeric text, expiry dates, lot numbers, logos, linear barcodes (UPC/EAN) and 2D DataMatrix codes
- Standard 2 m printhead umbilical cable for tight production line installation
- Complete I/O ports: product detection, encoder input, alarm light output, dual USB 2.0, built-in Ethernet for PLC integration
4. Wide Material Compatibility
Works seamlessly on plastic, glass, metal, paper cartons, flexible film, foil, and composite packaging with standard dye-based industrial inks.
Main Application Scenarios
Designed for light-to-medium throughput production lines with moderate operating speeds:
Food & Beverage Industry: Plastic bottle caps, canned goods, snack pouches, egg trays, plastic jars (expiry dates, batch codes, production serial numbers).
Cosmetics & Personal Care: Tubes, plastic cosmetic bottles, cream jars, sachets.
General Packaging: Paper boxes, flexible packaging films, adhesive labels.
Small Electronics & Hardware: Tiny plastic components, wires, cable sheaths, plastic fittings.
Pharmaceutical Auxiliary Packaging: Outer cartons, non-direct-contact medical packaging.
Frequently Asked Questions (Q&A)
Q1: What production speed can the Videojet 1240 support?
A: It reaches a maximum single-line printing speed of 162 m/min (533 ft/min). Speed reduces as print lines increase: dual-line around 92 m/min, 5-line at roughly 32 m/min, matching most light-duty packaging lines.
Q2: Is the 1240 hard to maintain for new factory operators?
A: No. The SmartCell™ service module is fully user-serviceable without professional technicians, taking only 5 minutes to replace core wear parts. The touchscreen has step-by-step guidance videos for ink refills, printhead cleaning and daily checks.
Q3: What ink types work with the Videojet 1240 printer?
A: Standard dye-based solvent inks are the primary option for plastic, glass and metal substrates. Custom fast-drying high-contrast inks are available for low-absorption packaging films; food-safe indirect contact inks are optional for food outer packaging.
Q4: Can I connect this printer to my factory PLC or production system?
A: Yes. It comes with built-in Ethernet LAN and standard I/O terminals for conveyor sensor and encoder sync. An optional RS232 kit supports serial connection for older production equipment, plus dual USB ports for offline message import/export.
Q5: What is the printhead cable length for the 1240?
A: Standard umbilical length is 2 m (6.56 ft). Extended cables are not supported for this entry-level CIJ model; it fits most compact, small-footprint production lines.
Q6: Does the Videojet 1240 support 2D barcode printing for traceability?
A: Yes. Native support for DataMatrix, Code 128, EAN, UPC and Code 39 barcodes, ideal for product traceability, batch tracking and compliance labeling requirements.
Q7: Is the machine suitable for humid food processing workshops?
A: The main cabinet carries an IP55 protection rating against dust and splashing water. For high-humidity continuous washdown environments, an optional dry air kit can be installed to protect the printhead from moisture buildup.
Q8: How many coding messages can the machine store internally?
A: The onboard memory holds more than 250 independent complex coding messages. Unlimited message storage is available via USB flash drive for factories with multiple product SKUs.
