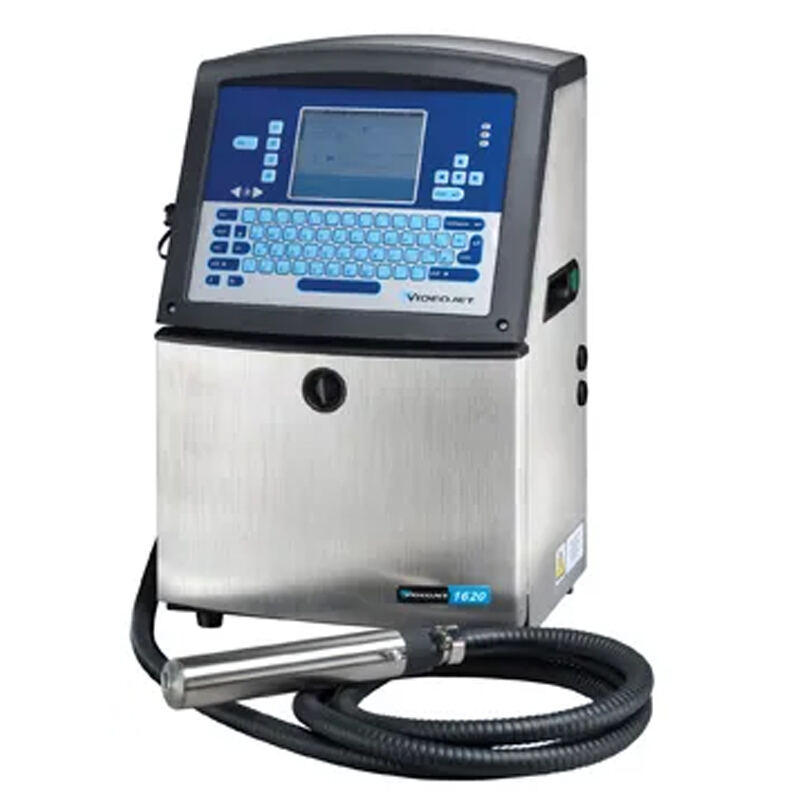

Videojet 1620 Continuous Inkjet Printer

The Videojet 1620 Continuous Inkjet printer is designed for more demanding applications including high speed applications and around-the-clock operation. Patented CleanFlowTM and Dynamic CalibrationTM technologies allow for longer runs without intervention. The 1620 is the standard for high throughput coding applications in production environments around the world.

label： quality printers，inkjet printing printers，pattern printer，best printer machine，printer code.

The Videojet 1620 is a high-performance continuous inkjet (CIJ) printer designed for high-speed, high-resolution, and 24/7 industrial coding. It sets the standard for reliable, precise marking in demanding production environments, ideal for micro-character and ultra-high-speed applications across food, beverage, pharmaceutical, and packaging industries.

Key Features

1. Unmatched Uptime & Reliability

CleanFlow™ Technology: Prevents ink buildup on the printhead, reducing clogging and extending maintenance intervals to 300 hours.
14,000-hour Core Life: Long-lasting modular ink core minimizes scheduled downtime and maintenance costs.
Dynamic Calibration™: Automatically adjusts jetting parameters for consistent print quality, even with temperature or ink viscosity changes.
Internal Pump Design: Eliminates external air intake, reducing contamination risks to the ink stream.

2. High-Speed & Precision Coding

Ultra-High Speed (UHS Model): Up to 508 m/min (1,666 ft/min) for single-line coding; 212 m/min (694 ft/min) for dual-line; 179 m/min (588 ft/min) for tri-line.
High Resolution (HR Model): 40-micron nozzle delivers 0.6 mm micro-character printing with exceptional legibility.
Precision Ink Drop™ System: Ensures sharp, accurate characters even at maximum speeds or long throw distances.

3. User-Friendly Operation

Clarity™ 10.4-inch Touchscreen: Bright, intuitive interface with WYSIWYG preview; easy to read from a distance.
Smart Cartridge™ System: Mess-free ink/solvent replacement with automatic compatibility checks to avoid errors.
Modular Printhead & Ink Core: Quick, tool-free replacement of wear parts to reduce service time.
Message Storage: Up to 250 complex messages (unlimited via USB) for fast recall.

4. Versatile Coding Capabilities

Prints alphanumeric text, dates, lot numbers, barcodes (UPC, EAN, Code 128), and 2D DataMatrix codes.
Supports multiple lines (1–5) and variable data for traceability and compliance.
Food-grade ink options (1620FG model) meet FDA food contact standards.

Applications

The Videojet 1620 excels in high-volume, space-constrained, or hygiene-critical production lines:
Food & Beverage: Bottles, cans, eggs, snacks, and flexible packaging (expiry dates, batch codes).
Pharmaceuticals: Blister packs, vials, and sachets (serial numbers, manufacturing dates for traceability).
Cosmetics & Personal Care: Tubes, bottles, and jars (batch/lot coding).
Packaging: Foil, film, cartons, and labels (high-speed line coding).
Electronics: Small components and cables (micro-character part numbers).

Q&A

Q1: How often does the 1620 require maintenance?

Printhead cleaning: Every 300 hours (via CleanFlow™)伟迪捷(Videojet).
Core replacement: Every 14,000 hours (modular design for quick swaps)伟迪捷(Videojet).
Routine checks: Minimal, thanks to self-diagnostics and automatic cleaning.

Q2: Can it work in wet or dusty environments?

Yes. The sealed, stainless-steel body and positive-pressure printhead prevent moisture/dust ingress, suitable for food processing and industrial settings.

Q3: What ink types are available?

Standard dye-based inks (plastic, metal, glass).
Food-grade inks (1620FG) for direct food contact.
Fast-drying, high-contrast, and specialty inks (UV-curable, solvent-based) for diverse substrates.

Q4: Is it easy to integrate with existing production lines?

Absolutely. It supports RS232/RS485/Ethernet communication and has flexible I/O ports for synchronization with conveyors, sensors, and PLCs伟迪捷(Videojet). The compact printhead (up to 3 m cable length) fits tight spaces.

Q5: How long does installation and training take?

Installation: 1–2 hours (plug-and-play setup).
Training: 1–2 hours for basic operation; advanced training available for maintenance and troubleshooting.

Q6: Does it support variable data printing (VDP)?

Yes. It seamlessly integrates with databases to print unique serial numbers, batch codes, or variable text for full product traceability.
