Videojet 6220 Thermal Transfer Overprinter

The Videojet 6220 is a cost-effective thermal transfer overprinter (TTO) designed to help manufacturers transition from analog methods like hot stamp coders to high-quality digital printing on flexible packaging. It provides an affordable entry point for achieving clear, consistent codes without the complexity and downtime associated with older technologies.

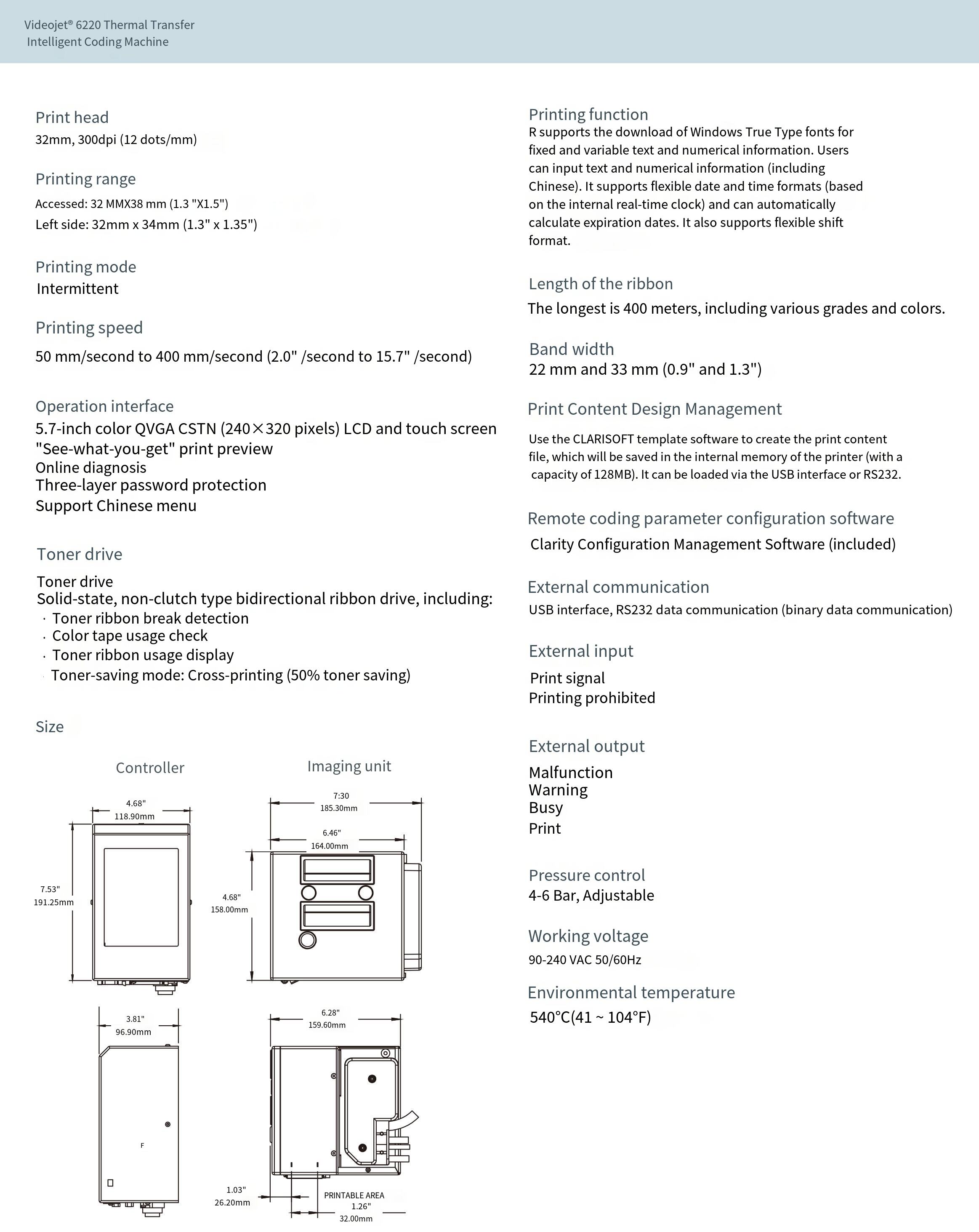

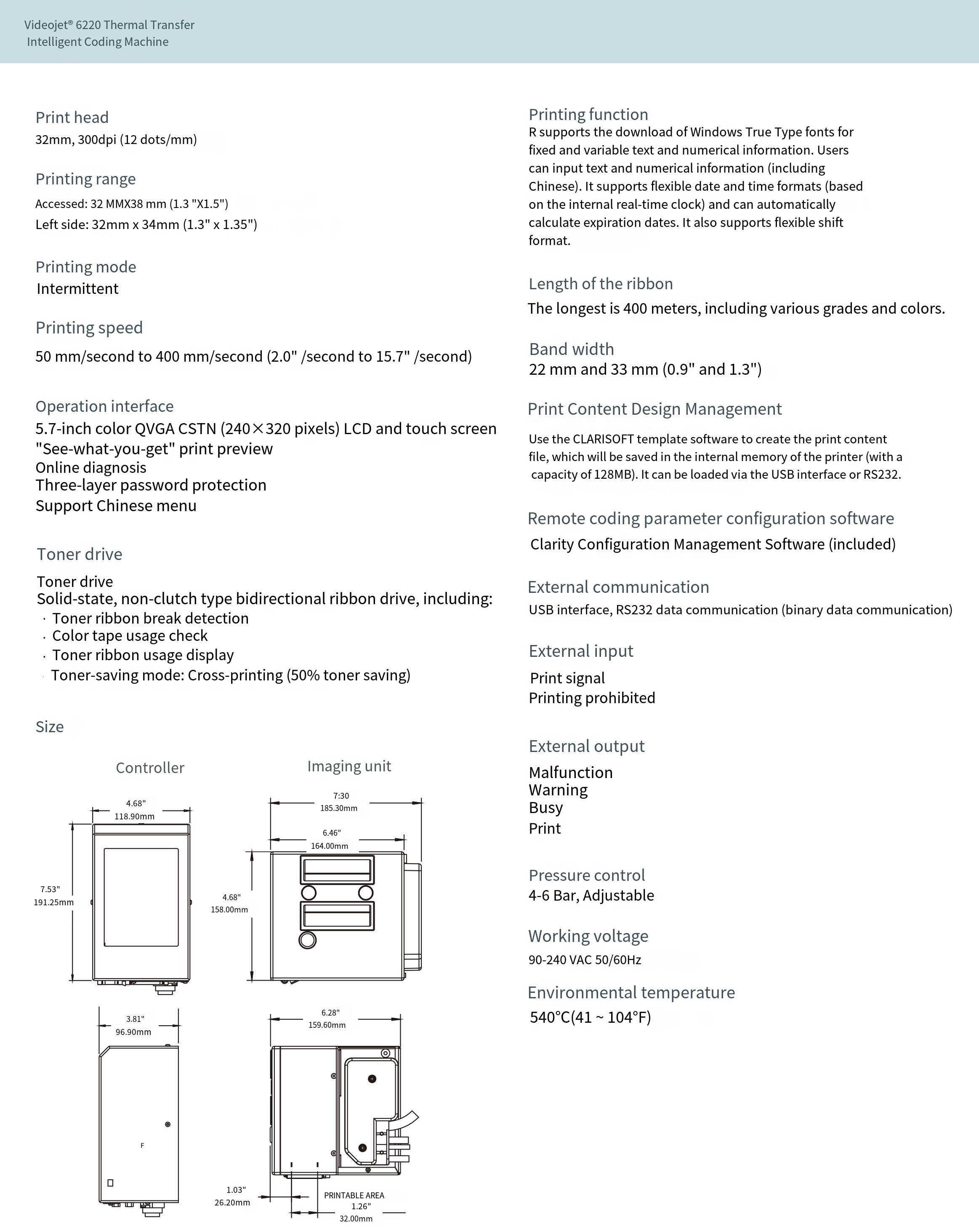

Performance & Specifications

The 6220 is engineered for intermittent motion packaging lines, delivering sharp 300 dpi prints on a wide variety of flexible films and labels. Its key specifications include:

• Printhead: 32 mm width with 300 dpi resolution

• Print Speed: 50 mm/s to 400 mm/s

• Ribbon Capacity: 400 meters

• Printing Modes: Intermittent only

Built for Uptime and Affordability

The 6220 utilizes Videojet's proven clutchless ribbon drive, which maintains consistent tension to virtually eliminate ribbon breaks and related downtime. Compared to hot stamp coders, it can reduce ribbon-change downtime by up to 75%. Its bi-directional ribbon drive also recaptures unused ribbon, maximizing prints per roll and delivering a significantly lower cost of ownership.

Simple Operation & Real-Time Coding

Operation is streamlined through a 5.7-inch color touchscreen with WYSIWYG print preview, reducing setup errors. The system's internal clock enables automatic printing of variable data, including best-by dates, batch/lot codes, shift codes, and production line IDs, directly on the packaging line.

Frequently Asked Questions (FAQs)

What is the maximum print speed of the Videojet 6220?

The 6220 can print at speeds up to 400 mm per second in intermittent mode, which is ideal for lower-to-mid-speed production lines.

What types of packaging materials can the 6220 print on?

It is well-suited for a wide variety of flexible packaging materials, commonly used in snack foods, ready meals, cereals, spices, seeds, and dried fruits.

What is the advantage of the clutchless ribbon drive?

The clutchless ribbon drive maintains consistent ribbon tension without mechanical parts, virtually eliminating ribbon breaks and the associated downtime. This ensures more reliable, uninterrupted production runs.

What printhead width does the 6220 support?

The Videojet 6220 is available with a 32 mm printhead, delivering 300 dpi resolution for high-quality codes.

Is the 6220 suitable for continuous motion packaging lines?

No, the 6220 supports intermittent printing mode only. For continuous motion applications, Videojet recommends models like the 6230 or 6330.
